ComplexWithFreeVertex< QF, N, T > Class Template Reference

A local simplicial complex with a free node at the center. More...

#include <ComplexWithFreeVertex.h>

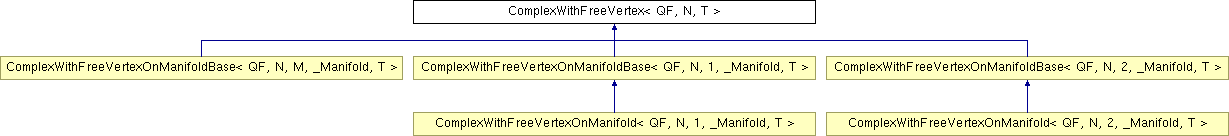

Inheritance diagram for ComplexWithFreeVertex< QF, N, T >:
ComplexWithFreeVertexOnManifoldBase< QF, N, M, _Manifold, T > ComplexWithFreeVertexOnManifoldBase< QF, N, 1, _Manifold, T > ComplexWithFreeVertexOnManifoldBase< QF, N, 2, _Manifold, T > ComplexWithFreeVertexOnManifold< QF, N, 1, _Manifold, T > ComplexWithFreeVertexOnManifold< QF, N, 2, _Manifold, T >

List of all members.

Public Types

typedef T Number
 The number type.
typedef SWFV::Vertex Vertex
 A vertex.
typedef SWFV::Face Face
 A face of the simplex.

Public Member Functions

Constructors etc.

 ComplexWithFreeVertex ()
 Default constructor. Un-initialized memory.
template<typename FaceIterator >
 ComplexWithFreeVertex (FaceIterator beginning, FaceIterator end)
 Construct from the fixed faces.
 ~ComplexWithFreeVertex ()
 Trivial destructor.
Accessors.

Vertex getFreeVertex () const
 Return the free vertex.
Manipulators.

template<typename FaceIterator >
void set (FaceIterator begin, FaceIterator end)
 Set the fixed vertices.
Mathematical functions

void computeBBox (const Vertex &v, BBox< N, T > *bb)
 Calculate the bounding box for the complex.
Number computeContent (const Vertex &v)
 Return the content for the given free node.
void computeGradientOfContent (const Vertex &v, Vertex *gradient)
 Calculate the gradient of the content for the given free node.
Number computeNorm2 (const Vertex &v)
 Return the 2-norm of the quality metric for the given free node.
void computeGradientOfNorm2 (const Vertex &v, Vertex *gradient)
 Calculate the gradient of the 2-norm of the quality metric for the given free node.
Number computeNorm2Modified (const Vertex &v)
 Return the 2-norm of the modified quality metric for the given free node.
void computeGradientOfNorm2Modified (const Vertex &v, Vertex *gradient)
 Calculate the gradient of the 2-norm of the modified quality metric for the given free node.

Protected Member Functions

void set (const Vertex &v)
 Set the free vertex in the simplices.

Detailed Description

template<template< int, typename > class QF, int N, typename T = double>
class ComplexWithFreeVertex< QF, N, T >

A local simplicial complex with a free node at the center.

Parameters:
QF is the quality functor for the simplices.
N is the dimension.
T is the number type. By default it is double.

This class implements the complex of simplices that surround a free node. It provides functions to aid in the optimization of the location of this node. The faces in the complex that are not incident to the free node are fixed. You can set the fixed faces with the ComplexWithFreeVertex(FaceIterator begin,FaceIterator end) constructor or with set(FaceIterator begin,FaceIterator end). You can evaluate various quantities as a function of the position of the free node:


Member Function Documentation

template<template< int, typename > class QF, int N, typename T = double>
void ComplexWithFreeVertex< QF, N, T >::set ( const Vertex v  )  [protected]

Set the free vertex in the simplices.

For effeciency, it checks if the free vertex has already been set to v.


The documentation for this class was generated from the following file:
