EulerianComm< N, T > Class Template Reference

Base class Eulerian communicator for the Eulerian-Lagrangian coupling. More...

#include <EulerianComm.h>

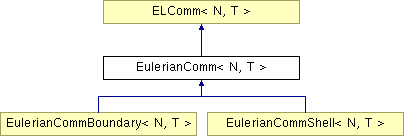

Inheritance diagram for EulerianComm< N, T >:

List of all members.

Public Member Functions
Constructors etc.
	EulerianComm (const MPI_Comm comm, const MPI_Comm eulerian, const int lagrangianSize, const int lagrangianRoot, VertexIdentifierStyle vertexIdentifierStyle)
	Construct from the communicators and Lagrangian info.
virtual	~EulerianComm ()
	Destructor. Free the duplicated communicator.
Accessors.
int	getNumberOfNodes () const
	Return the number of nodes.
int	getNumberOfFaces () const
	Return the number of faces.
const ads::Array< 1, Point > &	getPositions () const
	Return a const reference to the array of node positions.
const Number *	getPositionsData () const
	Return a const pointer to the node positions data.
const ads::Array< 1, Point > &	getVelocities () const
	Return a const reference to the array of node velocities.
const Number *	getVelocitiesData () const
	Return a const pointer to the node velocities data.
const ads::Array < 1, IndexedFace > &	getConnectivities () const
	Return a const reference to the array of node connectivities.
const int *	getConnectivitiesData () const
	Return a const pointer to the node connectivities data.
Face Centroid/Normal Accessors.
const ads::Array< 1, Point > &	getFaceNormals () const
	Return a const reference to the array of face normals.
const Number *	getFaceNormalsData () const
	Return a const pointer to the face normals data.
const Point &	getFaceNormal (const int n) const
	Return a const reference to the n_th face normal.
const Number *	getFaceNormalData (const int n) const
	Return a const pointer to the n_th face normal data.
const ads::Array< 1, Point > &	getFaceCentroids () const
	Return a const reference to the array of face centroids.
const Number *	getFaceCentroidsData () const
	Return a const pointer to the face centroids data.
const Point &	getFaceCentroid (const int n) const
	Return a const reference to the n_th face centroid.
const Number *	getFaceCentroidData (const int n) const
	Return a const pointer to the n_th face centroid data.
Manipulators.
ads::Array< 1, Number > &	getPressures ()
	Return a reference to the array of node pressures.
Number *	getPressuresData ()
	Return a pointer to the node pressures data.
Communication.
void	receiveMesh (const BBox &domain)
	Post receives for the relevant portions of the mesh from the solid processors.
void	receiveMesh (const Number *domain)
	Post receives for the relevant portions of the mesh from the solid processors.
void	waitForMesh ()
	Wait for the receives to complete. Build the assembled mesh.
virtual void	sendPressure ()=0
	Start sending the pressure to the relevant solid processors.
virtual void	waitForPressure ()=0
	Wait for the pressure sends to be copied into communication buffers.
void	computeFaceNormals ()
	Compute the face normals.
void	computeFaceCentroids ()
	Compute the face centroids.
virtual void	initializePressure ()=0
	Initialize the pressure at the nodes or the faces.
Protected Types
typedef Base::Number	Number
	The number type.
typedef Base::Point	Point
	A Cartesian point.
typedef Base::BBox	BBox
	A bounding box.
typedef Base::MpiRequest	MpiRequest
	An MPI request.
typedef Base::MpiStatus	MpiStatus
	Status for an MPI request.
typedef ads::FixedArray< N, int >	IndexedFace
	An indexed face type.
Protected Attributes
MPI_Comm	_eulerianCommunicator
	The Eulerian communicator.
int	_lagrangianRoot
	The Lagrangian root.
std::vector< ads::Array< 1, int > >	_identifiers
	The node identifiers from Lagrangian processors.
std::vector< ads::Array < 1, Point > >	_positions
	The node positions from Lagrangian processors.
std::vector< ads::Array < 1, Point > >	_velocities
	The node velocities from Lagrangian processors.
std::vector< ads::Array < 1, IndexedFace > >	_connectivities
	The node connectivities from Lagrangian processors.
std::vector< ads::Array < 1, Number > >	_pressures
	The node pressures to be sent to Lagrangian processors.
std::map< int, int >	_identifierToIndex
	The mapping from node identifiers to node indices in the assembled boundary.
ads::Array< 1, Point >	_assembledPositions
	The assembled positions.
ads::Array< 1, Point >	_assembledVelocities
	The assembled velocities.
ads::Array< 1, IndexedFace >	_assembledConnectivities
	The assembled connectivities.
ads::Array< 1, Number >	_assembledPressures
	The assembled pressures.
concurrent::PtToPt2Grp1Dom< N, T, int, ads::FixedArray < 3, int > >	_pointToPoint
	Class for computing the point-to-point communication scheme.
std::vector< ads::FixedArray < 3, int > >	_lagrangianData
	Data from the Lagrangian processors with which we communicate.
ads::Array< 1, Point >	_faceNormals
	The face normals.
ads::Array< 1, Point >	_faceCentroids
	The face centroids.

---

Detailed Description

template<int N, typename T>
class EulerianComm< N, T >

Base class Eulerian communicator for the Eulerian-Lagrangian coupling.

Parameters:

	N	is the space dimension. 2 and 3 are supported.
	T	is the floating point number type.

Implements the common functionality for boundaries and shells.

---

Constructor & Destructor Documentation

template<int N, typename T >

EulerianComm< N, T >::EulerianComm	(	const MPI_Comm	comm,
		const MPI_Comm	eulerian,
		const int	lagrangianSize,
		const int	lagrangianRoot,
		VertexIdentifierStyle	vertexIdentifierStyle
	)			[inline]

Construct from the communicators and Lagrangian info.

Parameters:

	comm	is the communicator that contains the Eulerian and Lagrangian processors.
	eulerian	is the Eulerian communicator. It is duplicated to avoid message conflicts.
	lagrangianSize	is the number of Lagrangian processors.
	lagrangianRoot	is the rank of the Lagrangian root in comm.
	vertexIdentifierStyle	is either LocalIndices or GlobalIdentifiers.

---

Member Function Documentation

template<int N, typename T >

void EulerianComm< N, T >::computeFaceCentroids

(

)

Compute the face centroids.

Call this after wait_mesh() if you will use the face centroids.

template<int N, typename T >

void EulerianComm< N, T >::computeFaceNormals

(

)

Compute the face normals.

Call this after wait_mesh() if you will use the face normals.

template<int N, typename T >

virtual void EulerianComm< N, T >::initializePressure

(

)

[pure virtual]

Initialize the pressure at the nodes or the faces.

This function should be called after wait_mesh() and before accessing the pressures.

This function is implemented in the derived classes.

Implemented in EulerianCommBoundary< N, T >, and EulerianCommShell< N, T >.

template<int N, typename T >

void EulerianComm< N, T >::receiveMesh

(

const Number *

domain

)

[inline]

Post receives for the relevant portions of the mesh from the solid processors.

Parameters:

domain

is the region of interest for this fluid processor.

This function just calls the above receive_mesh(const BBox& domain).

template<int N, typename T >

void EulerianComm< N, T >::receiveMesh

(

const BBox &

domain

)

Post receives for the relevant portions of the mesh from the solid processors.

Parameters:

domain

is the region of interest for this fluid processor.

template<int N, typename T >

virtual void EulerianComm< N, T >::sendPressure

(

)

[pure virtual]

Start sending the pressure to the relevant solid processors.

Call this function after the pressures have been set.

Implemented in EulerianCommBoundary< N, T >, and EulerianCommShell< N, T >.

template<int N, typename T >

void EulerianComm< N, T >::waitForMesh

(

)

Wait for the receives to complete. Build the assembled mesh.

This function must be called before accessing the mesh.

template<int N, typename T >

virtual void EulerianComm< N, T >::waitForPressure

(

)

[pure virtual]

Wait for the pressure sends to be copied into communication buffers.

This function must be called after send_pressure().

Implemented in EulerianCommBoundary< N, T >, and EulerianCommShell< N, T >.

---

The documentation for this class was generated from the following file:

• EulerianComm.h
