Tube Width 8 Detonation Cells, H2:O2:Ar / 2:1:7, T0=298 K, p0=10.0 kPa

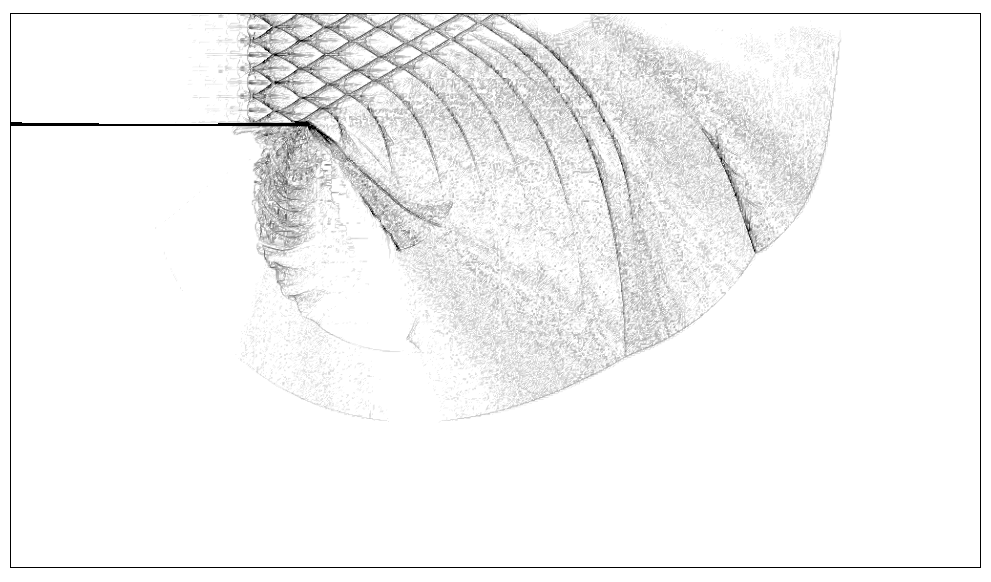

Schlieren plots of the density and temperature field 240 microseconds after leaving
the outlet.
Almost no triple points are visible anymore. The detonation has been weakened to a deflagration.
